| Номинальная мощность | 21,4 - 250 кВт |
| Скорость вращения | 500 - 3600 об/мин |
| Максимальные значения КПД | до 91,5 % |
| Диапазон рабочих напряжений | 440 В |
| Габаритная высота | 200 - 250 мм |
| Монтажное исполнение | IM 1001, IM 1011, IM 1031, IM 2001, IM 2011, IM 2031, IM 1002, IM 1012, IM 1032, IM 2012, IM 2032 |
| Степень защиты корпус | IP23 |
| Степень защиты | IC 06 |
| Класс изоляции | F |
| Диапазон рабочих температур | + 40 °C |

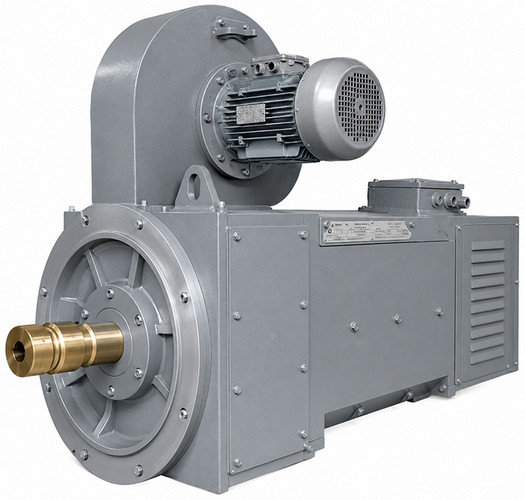

Электродвигатели постоянного тока серии 4ПФ одного из крупнейших производителей ПАО «Электромашина» (г. Харьков) имеют средние габариты с высотой оси в трех вариациях, предназначенные для работы с регулируемыми частотными преобразователями. Имеют шихтованный статор, независимое возбуждение. Обмотка двух видов компенсированная (маркировка К) и некомпенсированная, доступны версии с повышенной точностью (маркировка П). Выносная принудительная система охлаждения с независимым питанием вентилятора. Множество вариантов конструктивного исполнения.
Могут комплектоваться встроенными тахогенераторами, помимо продолжительного цикла работы допускаются кратковременные перерывы характерные режимам S2 - S8 где среднеквадратичная величина тока за период работы не превышает номинальные значения.
| Тип двигателя | Мощность, кВт | Напряжение, В | Ток, А | Частота вращения, об/мин | КПД, % |
| 4ПФ200МКУХЛ4 | 41.0/25.8 | 220 | 223 | 700/2200/3500 | 82 |
| 40.0/24.0 | 400 | 122 | 670/2000/3300 | 80.5 | |
| 48.0/29.3 | 400 | 146 | 900/2200/3600 | 83 | |
| 81.0/81.0 | 400 | 226 | 1360/3600/3600 | 88 | |
| 45.0/28.0 | 440 | 123 | 750/2250/3600 | 82 | |
| 55.0/33.6 | 440 | 146 | 1000/2200/3600 | 84.5 | |
| 90.0/90.0 | 440 | 227 | 1500/3600/3600 | 89 | |
| 4ПФ200МУХЛ4 | 41.0/41.0 | 220 | 225 | 750/2250/2250 | 82.5 |
| 40.0/26.7 | 400 | 120 | 720/1500/2250 | 82 | |
| 48.0/24.0 | 400 | 143 | 950/1250/2500 | 85 | |
| 81.0/71.0 | 400 | 225 | 1450/3200/3600 | 88.5 | |
| 45.0/30.0 | 440 | 120 | 800/1500/2250 | 83 | |
| 55.0/27.5 | 440 | 143 | 1060/1250/2500 | 85.5 | |
| 90.0/82.5 | 440 | 225 | 1600/3300/3600 | 89.5 | |
| 4ПФ200LКУХЛ4 | 33.0/20.0 | 220 | 191 | 500/1500/2500 | 78 |
| 33.0/17.8 | 400 | 104 | 450/1350/2500 | 76.5 | |
| 48.0/27.0 | 400 | 147 | 670/1850/3300 | 81 | |
| 67.0/56.0 | 400 | 191 | 980/3000/3600 | 86.5 | |
| 99.0/99.0 | 400 | 275 | 1450/3600/3600 | 88.6 | |
| 37.0/21.4 | 440 | 105 | 500/1450/2500 | 78 | |
| 55.0/28.2 | 440 | 149 | 750/1850/3600 | 82.5 | |
| 75.0/75.0 | 440 | 193 | 1060/3600/3600 | 87 | |
| 110.0/110.0 | 440 | 275 | 1600/3600/3600 | 89 | |
|
4ПФ200LУХЛ4
| 33.0/33.0 | 220 | 191 | 540/1500/1500 | 78 |
| 33.0/27.05 | 400 | 102 | 480/1250/1500 | 80 | |
| 48.0/21.3 | 400 | 144 | 720/1000/2250 | 84 | |
| 67.0/65.0 | 400 | 191 | 1060/2900/3000 | 86.5 | |
| 99.0/60.0 | 400 | 274 | 1540/2200/3600 | 89 | |
| 37.0/30.8 | 440 | 102 | 560/1250/1500 | 80.5 | |
| 55.0/24.4 | 440 | 144 | 800/1000/2500 | 84.5 | |
| 75.0/72.5 | 440 | 191 | 1180/2900/3000 | 87 | |
| 110.0/67.0 | 440 | 274 | 1700/2200/3600 | 90 | |
| 4ПФ200МКО4 | 36.0/30.0 | 220 | 201 | 810/2500/3000 | 82 |
| 37.0/23.0 | 400 | 115 | 740/2250/3600 | 80.5 | |
| 45.0/27.3 | 400 | 132 | 960/2200/3600 | 83 | |
| 72.0/72.0 | 400 | 201 | 1575/3600/3600 | 88 | |
| 42.5/26.6 | 440 | 115 | 820/2250/3600 | 82 | |
| 50.0/30.5 | 440 | 132 | 1060/2200/3600 | 84.5 | |
| 90.0/90.0 | 440 | 226 | 1750/3600/3600 | 89 | |
|
4ПФ200МО4
| 36.0/36.0 | 220 | 201 | 850/2250/2250 | 82.5 |
| 37.0/25.0 | 400 | 115 | 750/1500/2250 | 82 | |
| 45.0/22.5 | 400 | 132 | 960/1250/2250 | 85 | |
| 72.0/64.0 | 400 | 201 | 1600/3200/3600 | 88.5 | |
| 42.5/28.0 | 440 | 115 | 830/1500/2250 | 83 | |
| 50.0/25.0 | 440 | 132 | 1060/1250/2500 | 85.5 | |
| 90.0/82.5 | 440 | 225 | 1800/3300/3600 | 89.5 | |
| 4ПФ200LКО4 | 33.0/20.0 | 220 | 191 | 550/1500/2500 | 78 |
| 30.0/16.2 | 400 | 95 | 480/1350/2500 | 76 | |
| 44.0/22.6 | 400 | 135 | 720/1850/3600 | 81 | |
| 67.0/56.0 | 400 | 191 | 1070/3000/3600 | 86.5 | |
| 99.0/99.0 | 400 | 275 | 1550/3600/3600 | 88.6 | |
| 33.5/19.4 | 440 | 95 | 520/1450/2500 | 78 | |
| 51.0/25.7 | 440 | 135 | 800/1850/3600 | 82.5 | |
| 75.0/75.0 | 440 | 193 | 1180/3600/3600 | 87 | |
| 110.0/110.0 | 440 | 275 | 1700/3600/3600 | 89 | |
| 4ПФ200LО4 | 33.0/33.0 | 220 | 191 | 540/1500/1500 | 78 |
| 30.0/25.0 | 400 | 95 | 480/1250/1500 | 80 | |
| 44.0/20.0 | 400 | 135 | 720/1000/2200 | 84 | |
| 67.0/65.0 | 400 | 191 | 1060/2900/3000 | 86.5 | |
| 99.0/60.0 | 400 | 274 | 1600/2200/3600 | 89 | |
| 33.5/28.0 | 440 | 95 | 530/1250/1500 | 80.5 | |
| 51.0/22.06 | 440 | 135 | 800/1000/2250 | 84.5 | |
| 75.0/72.5 | 440 | 191 | 1180/2900/3000 | 87 | |
| 110.0/67.0 | 440 | 274 | 1800/2200/3600 | 90 | |
| 4ПФ225МКУХЛ4 | 38.0/21.3 | 400 | 119 | 450/1400/2500 | 78 |
| 81.0/73.0 | 400 | 230 | 900/2700/3000 | 87 | |
| 118.0/118.0 | 400 | 330 | 1360/3000/3000 | 88.8 | |
| 42.5/23.8 | 440 | 119 | 500/1400/2500 | 79.5 | |
| 90.0/90.0 | 440 | 230 | 1000/3000/3000 | 87.5 | |
| 132.0/132.0 | 440 | 333 | 1500/3000/3000 | 89.5 | |
| 4ПФ225МУХЛ4 | 38.0/38.0 | 400 | 117 | 450/1500/1500 | 80 |
| 81.0/67.0 | 400 | 230 | 900/2500/3000 | 87 | |
| 118.0/78.5 | 400 | 329 | 1350/2000/3000 | 89.5 | |
| 42.5/42.5 | 440 | 117 | 500/1100/1500 | 80.5 | |
| 90.0/75.0 | 440 | 230 | 1000/2500/3000 | 87.5 | |
| 132.0/88.0 | 440 | 329 | 1500/2000/3000 | 90 | |
| 4ПФ225LКУХЛ4 | 45.0/22.5 | 400 | 142 | 450/1250/2500 | 77 |
| 67.0/37.0 | 400 | 200 | 675/1650/3000 | 83 | |
| 99.0/99.0 | 400 | 282 | 900/3000/3000 | 86.7 | |
| 145.0/145.0 | 400 | 400 | 1360/3000/3000 | 88 | |
| 50.0/25.0 | 440 | 142 | 500/1250/2500 | 79 | |
| 75.0/41.2 | 440 | 200 | 750/1650/3000 | 84 | |
| 110.0/110.0 | 440 | 282 | 1000/3000/3000 | 87 | |
| 160.0/160.0 | 440 | 400 | 1500/3000/3000 | 89 | |
| 4ПФ225LУХЛ4 | 45.0/27.0 | 400 | 137 | 450/900/1500 | 80 |
| 100.0/66.5 | 400 | 279 | 900/2000/3000 | 87 | |
| 145.0/72.5 | 400 | 398 | 1360/1500/3000 | 89.5 | |
| 50.0/30.0 | 440 | 137 | 500/900/1500 | 80.5 | |
| 110.0/73.5 | 440 | 279 | 1060/2000/3000 | 87.5 | |
| 160.0/80.0 | 440 | 398 | 1500/1500/3000 | 90 | |
| 4ПФ225МКО4 | 36.0/20.3 | 400 | 112 | 450/1400/2500 | 78 |
| 81.0/81.0 | 400 | 230 | 1000/3000/3000 | 87 | |
| 118.0/118.0 | 400 | 330 | 1450/3000/3000 | 88.8 | |
| 40.2/22.4 | 440 | 112 | 500/1400/2500 | 79.5 | |
| 90.0/90.0 | 440 | 230 | 1100/3000/3000 | 87.5 | |
| 132.0/132.0 | 440 | 333 | 1600/3000/3000 | 89.5 | |
| 4ПФ225МО4 | 36.0/36.0 | 400 | 112 | 480/1500/1500 | 80 |
| 81.0/67.0 | 400 | 230 | 900/2500/3000 | 87 | |
| 118.0/78.5 | 400 | 329 | 1490/2000/3000 | 89.5 | |
| 40.0/40.0 | 440 | 112 | 530/1500/1500 | 80.5 | |
| 90.0/75.0 | 440 | 230 | 1000/2500/3000 | 87.5 | |
| 132.0/88.0 | 440 | 329 | 1650/2000/3000 | 90 | |
| 4ПФ225LКО4 | 41.0/20.5 | 400 | 127 | 450/1250/2500 | 76.5 |
| 61.0/33.5 | 400 | 179 | 670/1650/3000 | 83 | |
| 95.0/95.0 | 400 | 270 | 1000/3000/3000 | 86.7 | |
| 136.0/136.0 | 400 | 375 | 1360/3000/3000 | 88 | |
| 45.0/22.5 | 440 | 127 | 500/1250/2500 | 77 | |
| 67.0/36.8 | 440 | 179 | 750/1650/3000 | 84 | |
| 105.0/105.0 | 440 | 270 | 1100/3000/3000 | 87 | |
| 150.0/150.0 | 440 | 375 | 1500/3000/3000 | 89 | |
| 4ПФ225LО4 | 41.0/24.6 | 400 | 123 | 450/900/1500 | 80 |
| 95.0/63.0 | 400 | 270 | 1000/2000/3000 | 87 | |
| 136.0/68.0 | 400 | 375 | 1450/1500/3000 | 89.5 | |
| 45.0/27.0 | 440 | 123 | 500/900/1500 | 80.5 | |
| 100.0/66.6 | 440 | 253 | 1120/2000/3000 | 87.5 | |
| 150.0/75.0 | 440 | 375 | 1600/1600/3000 | 90 | |
| 4ПФ250МКУХЛ4 | 80.0/70.6 | 400 | 234 | 680/2650/3000 | 84.5 |
| 118.0/118.0 | 400 | 336 | 900/3000/3000 | 87.5 | |
| 180.0/168.0 | 400 | 495 | 1365/2800/3000 | 90 | |
| 90.0/79.5 | 440 | 236 | 750/2650/3000 | 85.5 | |
| 132.0/132.0 | 440 | 336 | 1000/3000/3000 | 88.5 | |
| 200.0/190.0 | 440 | 495 | 1500/2800/3000 | 91 | |
| 4ПФ250МУХЛ4 | 82.0/53.3 | 400 | 232 | 680/1500/2250 | 85.5 |
| 120.0/50.0 | 400 | 330 | 900/1250/3000 | 87.5 | |
| 180.0/129.05 | 400 | 495 | 1350/2160/3000 | 90.5 | |
| 90.0/60.0 | 440 | 232 | 750/1500/2250 | 86 | |
| 132.0/55.0 | 440 | 330 | 1000/1250/3000 | 88 | |
| 200.0/144.0 | 440 | 495 | 1500/2160/3000 | 91 | |
| 4ПФ250LКУХЛ4 | 67.0/34.8 | 400 | 203 | 450/1300/2500 | 81.8 |
| 100.0/88.0 | 400 | 286 | 680/2650/3000 | 86.5 | |
| 145.0/114.0 | 400 | 402 | 900/2360/3000 | 88.5 | |
| 225.0/172.0 | 400 | 612 | 1450/2300/3000 | 90.5 | |
| 75.0/39.0 | 440 | 203 | 500/1300/2500 | 82.5 | |
| 110.0/97.0 | 440 | 283 | 750/2650/3000 | 87.5 | |
| 160.0/160.0 | 440 | 402 | 1000/3000/3000 | 89 | |
| 250.0/190.0 | 440 | 612 | 1600/2300/3000 | 91 | |
| 4ПФ250LУХЛ4 | 67.0/22.3 | 400 | 202 | 450/500/1500 | 82 |
| 100.0/49.0 | 400 | 282 | 675/1100/2250 | 86 | |
| 145.0/48.0 | 400 | 402 | 900/1000/3000 | 89 | |
| 227.0/148.0 | 400 | 612 | 1450/1950/3000 | 91 | |
| 75.0/25.0 | 440 | 202 | 500/500/1500 | 82.5 | |
| 110.0/53.5 | 440 | 282 | 750/1100/2250 | 86.5 | |
| 160.0/53.5 | 440 | 402 | 1000/1000/3000 | 89.5 | |
| 250.0/162.0 | 440 | 612 | 1600/1950/3000 | 91.5 | |
| 4ПФ250МКО4 | 75.0/66.0 | 400 | 218 | 680/2650/3000 | 84.5 |
| 109.0/109.0 | 400 | 306 | 900/3000/3000 | 87.5 | |
| 168.0/157.0 | 400 | 458 | 1400/2800/3000 | 90 | |
| 83.0/73.0 | 440 | 218 | 750/2650/3000 | 85.5 | |
| 120.0/120.0 | 440 | 306 | 1000/3000/3000 | 88.5 | |
| 185.0/173.0 | 440 | 458 | 1550/2800/3000 | 91 | |
| 4ПФ250МО4 | 75.5/50.3 | 400 | 214 | 670/1500/2250 | 85.5 |
| 109.0/45.5 | 400 | 300 | 900/1250/3000 | 87.5 | |
| 168.0/121.0 | 400 | 458 | 1450/2160/3000 | 90.5 | |
| 83.0/55.3 | 440 | 214 | 750/1500/2250 | 86 | |
| 120.0/50.0 | 440 | 300 | 1000/1250/3000 | 88 | |
| 185.0/133.0 | 440 | 458 | 1600/2160/3000 | 91 | |
| 4ПФ250LКО4 | 61.0/32.0 | 400 | 184 | 450/1300/2500 | 81.8 |
| 91.0/80.0 | 400 | 268 | 680/2650/3000 | 86.5 | |
| 134.0/105.0 | 400 | 372 | 1000/2360/3000 | 88.5 | |
| 218.0/167.0 | 400 | 588 | 1540/2300/3000 | 90.5 | |
| 68.0/35.0 | 440 | 184 | 500/1300/2500 | 82.5 | |
| 105.0/88.0 | 440 | 268 | 750/2650/3000 | 87.5 | |
| 145.0/116.0 | 440 | 372 | 1100/2360/3000 | 89 | |
| 240.0/184.0 | 440 | 588 | 1700/2300/3000 | 91 | |
| 4ПФ250LО4 | 62.0/20.6 | 400 | 183 | 450/500/1500 | 82 |
| 95.0/46.8 | 400 | 269 | 680/1100/2250 | 86 | |
| 132.0/44.0 | 400 | 364 | 1000/1000/3000 | 89 | |
| 218.0/141.0 | 400 | 587 | 1600/1950/3000 | 91 | |
| 68.0/22.6 | 440 | 183 | 500/500/1500 | 82.5 | |
| 105.0/51.5 | 440 | 269 | 750/1100/2250 | 86.5 | |
| 145.0/48.4 | 440 | 364 | 1100/1100/3000 | 89.5 | |
| 240.0/156.0 | 440 | 587 | 1750/1950/3000 | 91.5 |
Купить электродвигатели постоянного тока 4ПФ (ПАО «Электромашина»), узнать цену и больше информации о продукте Вы можете обратившись к нашим специалистам.
